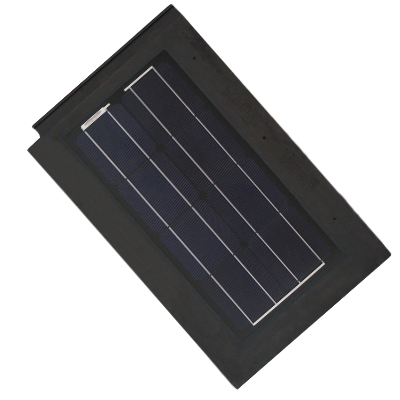

24W Solar Tile-F24G-01

Update: 2015/6/12      View:
  • Brand:    SUNCON
  • Type:    F24G-01
  • Introduction:    Long life: life up to 50 years;High Power: 2 watts strength than ordinary times, the bending strength of the anti-hail or transport 3000N can withstand impact without cracking; Light weight;Process Environmenta
  • Product Source:    www.sunconpv.com
  • Order Online
Introduction


气参数 Electrical Characteristics
品名 Type
F24G-01
峰值功率 (W)        Max-Power Pm
24
功率偏差 (W)        Power Tolerance
+/- 3%
开路电压 Voc(V)     Open-Circuit Voltage
3.7
短路电流 ISC(A)     Short-Circuit Current
8.53
最佳工作电压 Vm(V)  Max-Power Voltage
3.1
最佳工作电流 Im(A)   Max-Power Current
7.90
电池片效率 (%)       Cell Efficeency
17%
物理参数 Mechanical Specifications
电池片尺寸  Cell size         (mm)
156*156

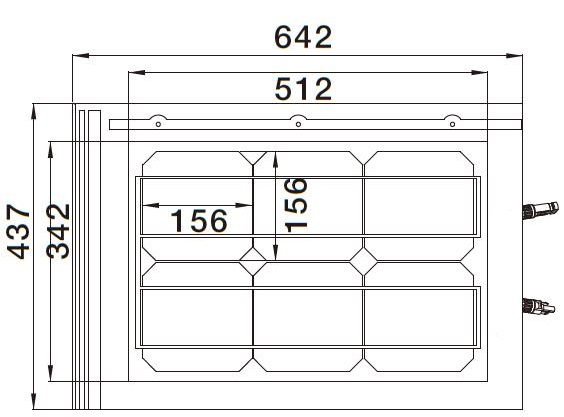

成品尺寸    Dimension       (mm)
642*437*27
重量        Weight          (kg)
5.2
边框材质    Material frame
ceramic
钢化玻璃    Glass,type and thickness
高透光率,低铁钢化玻璃,厚度3.2mm
High Transmission,Low lrion,Tempered Glass 3.2mm
抗压能力    Compression strength
>2400pa
渗水率      Water seepage performance
<0.5%
24W 光伏瓦 Solar Tile
尺寸
Tile Dimension
功率
Single Power
可铺瓦数/M2
Tile Number/M2
可铺功率/M2
Power/M2
642*437*27mm
24W/pcs
4.4pcs/m2
105.6W/m2
24W 光伏瓦系统参考信息 Reference Solar Roof System With 8W Solar Tile
功率选型
Output Power Capacity
光伏瓦需求数量
Solar Tiles Quantity
系统需求面积
Minimum Roof Size
2.1 KW
90 PCS
22.2 M2
3.0 KW
128 PCS
31.6 M2
4.3 KW
180 PCS
43.7 M2
5.1 KW
216 PCS
52.2 M2
6.1 KW
256 PCS
62.4 M2
