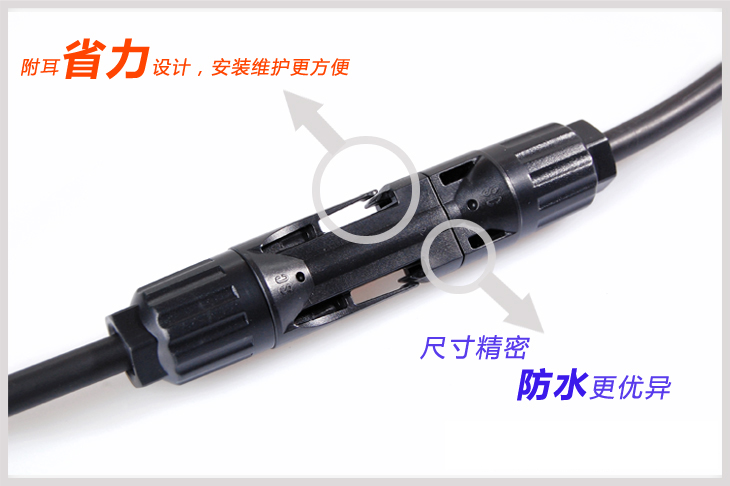

Solar Connector-C4B

Update: 2015/1/28      View:
  • Brand:    SUNCON
  • Type:    C4B
  • Introduction:    Anti-aging Material: PPO / PC material,strong anti-aging, anti-UV, life ≥25 years; hardware connectors: High-quality tinned copper, Low resistance, plug long life; waterproof rating IP67.
  • Product Source:    www.sunconpv.com
  • Order Online
Introduction



Product No.

C4B

Rated voltage

TUV 1000V DC / UL 600V DC

Rated current

30A

Suitable cable cross sections

2.5mm2 ~ 10.0mm2 / 14AWG ~ 8AWG

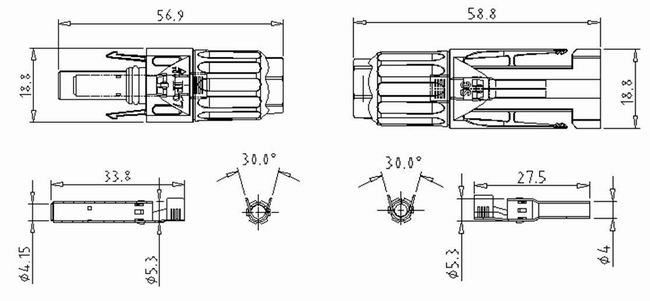

Terminal size

Φ4.0mm

Test voltage

DC 8KV 1min

Pollution degree

2

Protection class

Class

Terminal Material

铜镀锡

Contact resistance

≤ 5mΩ

Insulation Materials

PPO

IP rating

IP67(IEC 60529)

Pull-out force

≥ 50N

Insertion Force

≤ 50N

Test temperature

-40℃~ +85℃

Flame Class

UL94V - 0
