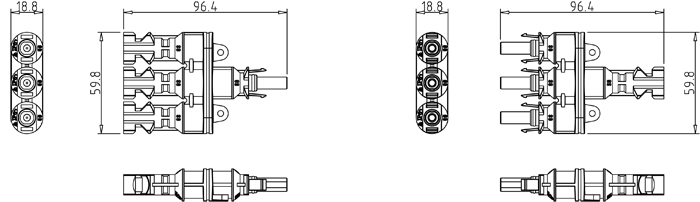

Solar Connector-B4C/B4D
- Brand: SUNCON
- Type: B4C/B4D
- Introduction: Anti-aging Material: PPO / PC material,strong anti-aging, anti-UV, life ≥25 years; hardware connectors: High-quality tinned copper, Low resistance, plug long life; waterproof rating IP67.
- Product Source: www.sunconpv.com
|
Product No. |
B4C/B4D |
|
Rated voltage |
TUV 1000V DC / UL 600V DC |
|
Rated current |
30A |
|
Suitable cable cross sections |
2.5mm2 ～ 10.0mm2 / 14AWG ～ 8AWG |
|
Terminal size |
Φ4.0mm |
|
Test voltage |
DC 8KV 1min |
|
Pollution degree |
2 |
|
Protection class |
Class Ⅱ |
|
Terminal Material |
铜镀锡 |
|
Contact resistance |
≤ 5mΩ |
|
Insulation Materials |
PPO |
|
IP rating |
IP67(IEC 60529) |
|
Pull-out force |
≥ 50N |
|
Insertion Force |
≤ 50N |
|
Test temperature |
－40℃～ +85℃ |
|
Flame Class |
UL94V - 0 |
